Hiwin Mikrosystem Enclosed
Accuracy：(5+5ML/1000)μm

Resolution up to 1µm

IP65
Hiwin Mikrosystem FR Series Servo Motor
FEATURES:

The inner rotary permanent magnet motor

Brushless electronically commutated drive

High power density

High efficiency

Optional key

Optional brake

Optional seal
Hiwin Mikrosystem Gantry structure ：Customization

With various combinations of standard single-axis stage, it may constitute a number of different itineraries and functional gantry stage. It can shorten product development time course, and also has the advantages of mass production. This type of stage is often used in optoelectronic components, panel displays, medical equipment industries, etc.
Hiwin Mikrosystem Gantry structure ：Standard
FEATURES:

Slight inertia

Simple assembly

Rigid aluminum bridge

Equipped with coreless linear motors
Hiwin Mikrosystem Ironcore Linear Motor
FEATURES;

Maximum velocity 30 m/s

Maximum acceleration 10G

The speed ripple at 0.1 m/s : 2~3%

Direct drive
Hiwin Mikrosystem Ironless Linear Motor
FEATURES:

V_max = 5m/s

A_max = 5G

Velocity ripple = 0.80% at V =0.1 m/s (before compensating)

No noise 0 Db

Direct Drive
Hiwin Mikrosystem Linear + Rotary
10 years of product stability and more than 1 year maintenance.

50nm positioning accuracy can be achieved.

Up to 98% more transmission efficiency and 50% of powersaving with combination of direct drive motors and high efficient driver.
Hiwin Mikrosystem Linear Planar Servo Motor
XY table

Closed loop thanks to integrated distance measurement

Air bearing free of wear

No externally measurable magnetic fields

The position accuracy is stable because of low heat generation.

Can be mounted upside down
Hiwin Mikrosystem Multi-axes ：Customization

The standardized positioning axes presented in this catalogue make it possible to handle many kinds of positioning tasks.For positioning tasks, that cannot be solved using standard axes, HIWIN engineers are available to work out an optimized solution for customers. Sampling of customized solutions are shown here. In several example, mechanics are not the only parts customized. For intance, with the planar motors, special software is developed in order to obtain optimal integration of the positioning system to the production process.
Hiwin Mikrosystem Multi-Axis Motion Controller HIMC
FEATURES:

Up to 16 fully synchronized slaves

Controller cycle time 250us

10/100/1000 Mbps Ethernet/IP host communication

Multi-task HMPL programming with maximum 64 user tasks

Software library supported for C/C++/C#

Support all mega-ulink 2.0 compatible drive and I/O modules

CE/UL approvals (pending)
Hiwin Mikrosystem Positioning Measurement System – 1mm
Resolution:1mm(Analog) 1μm(Digital)

Repeatability:±3μm(Analog) ±2μm(Digital)

Reference signal:1Pulse/1mm

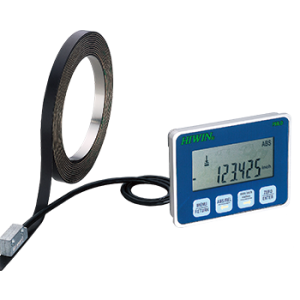

Hiwin Mikrosystem Positioning Measurement System – 5mm
Accuracy：±(80μm+15μm/m*L) L:Length

Resolution 5mm(Analog) 5μm(Digital)

Repeatability±15μm(Analog) ±10μm(Digital)

Reference signal：1Pulse/1mm
